    AS75-A1

    Model:AS75-A1

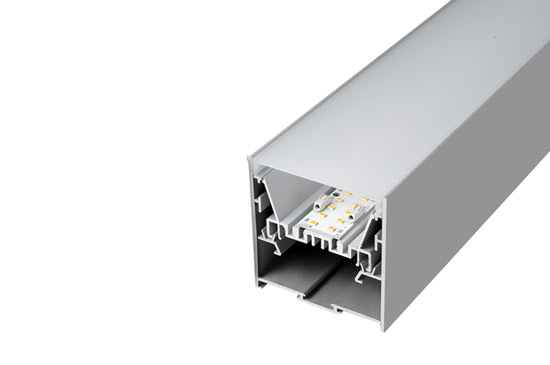

    Anodized aluminium finish, 6063 grade aluminium,The profile is designed to suspend from the ceiling or surface mounting,The Profile is equipped with PMMA diffuser to get high lumen output.

    Back to list >>

    ·Anodized aluminium finish, 6063 grade aluminium.

    ·The profile is designed to suspend from the ceiling or surface mounting.

    ·The Profile is equipped with PMMA diffuser to get high lumen output.

    ·The gear tray allows us screw the rigid board and house the power supply on the other.

    ·Meanwhile, the gear tray can be removed from the front which is easy maintenance.

    ·With multiple rows of LED boards and enough depth to ensure a complete diffusion without of any spotting.

    ·Ideal for demanding applications such as offices, hospitals, warehouses and other work areas.

    ·3 years warranty.


    Item No.

    AS75-A1

    Material6030 Anodized alumium

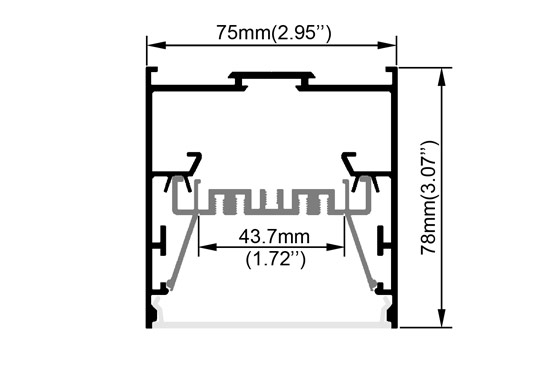

    Dimension75*78mm
    Standard length2.5m
    DiffuserPMMA frosted
    Available finishSilver/white/black

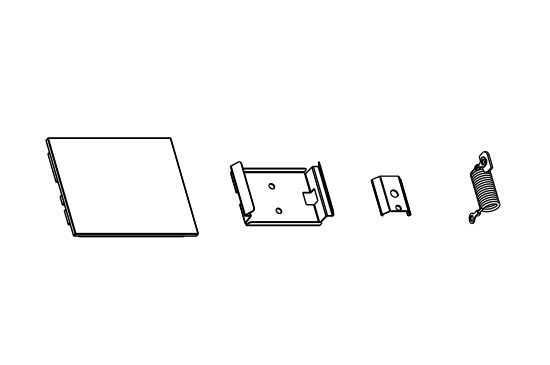

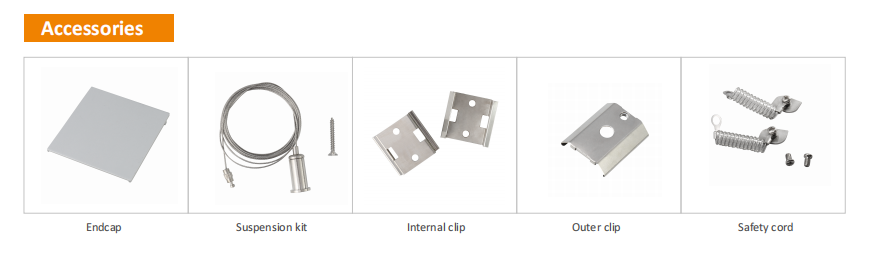

    AccessoiresCNC Alu.cap,internal clip,safety cord,clip,2m sus.wire

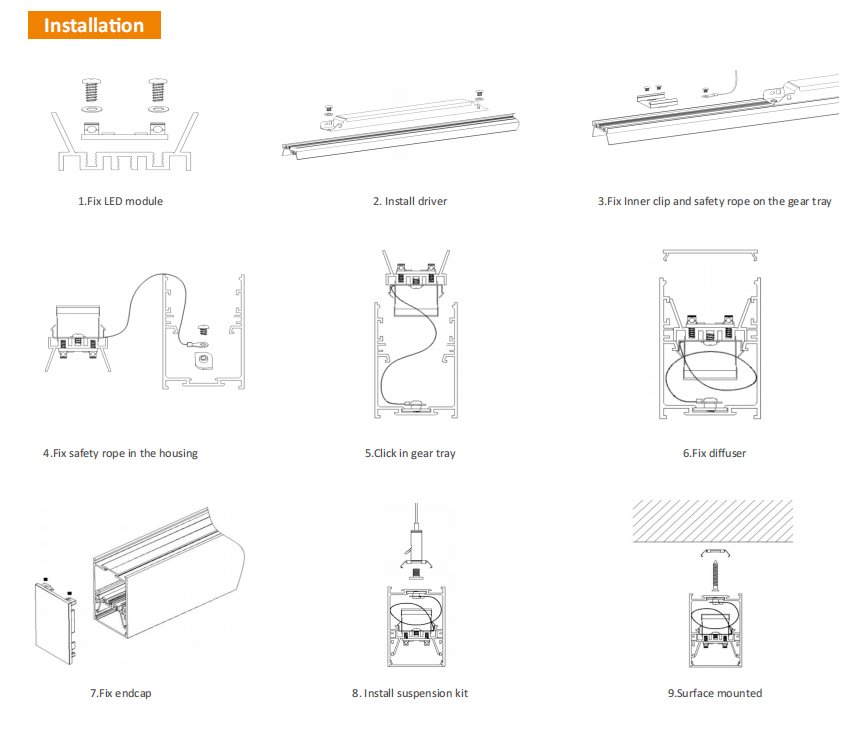

    InstallationSuspended & Surface mount
