    SM1919R

    Model:SM1919R

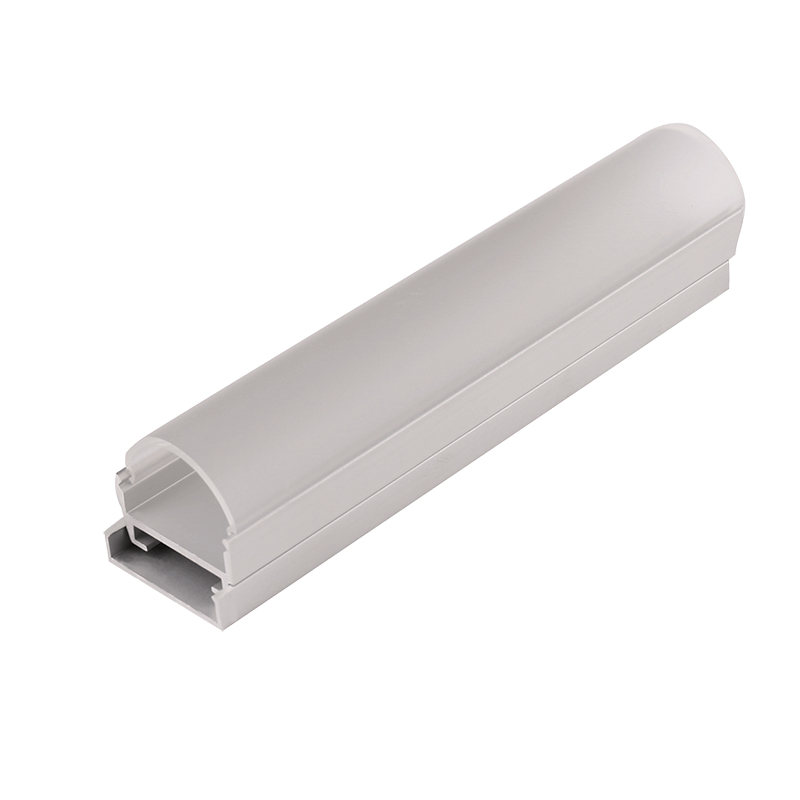

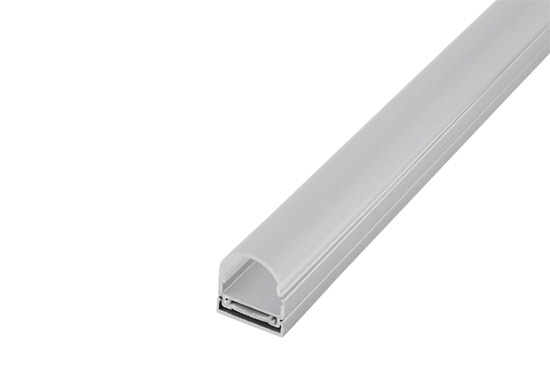

    Anodized aluminium profile, 6063 grade aluminium,The Profile is designed to mount directly on flat surface,The Profile can be equipped with PMMA opal/frosted/clear diffusers to creat different lighting output.

    Back to list >>

    ·Anodized aluminium profile, 6063 grade aluminium.

    ·The Profile is designed to mount directly on flat surface.

    ·The Profile can be equipped with PMMA opal/frosted/clear diffusers to creat different lighting output.

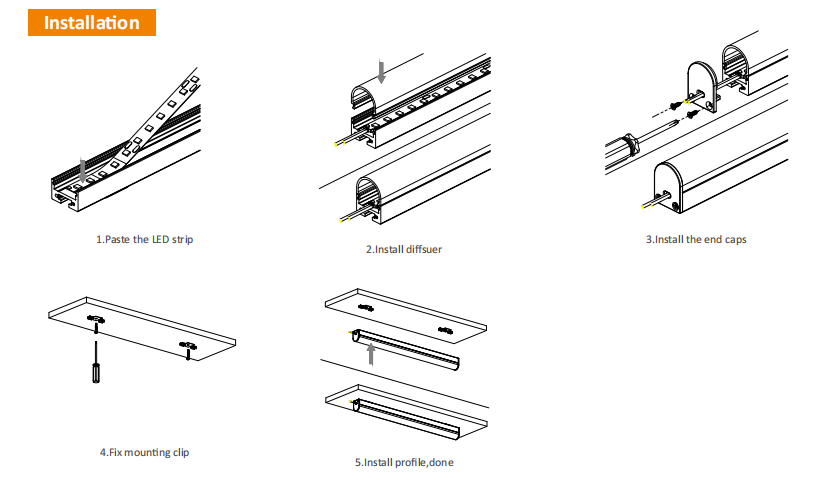

    ·The Profile is mounted on the surface using a mounting clip.

    ·The Profile is intended mainly for interiors, eg: lighting of cabinets, display shelves.

    ·3 years warranty.


    Application

    ·These extrusions are perfect to be installed but not limited to, in any flat surfaces whether it is a ceiling or wall, under or on top of the cabinet, display cases, shelvings and art niches. Installation is simple and can be done easily. Supplied in standard 1m or 2m lengths and cut-lengths can be customised upon request. Fitting colours can be customised as well.


    ·intended mainly for interiors, e.g. lighting of cabinets, stairs, display windows etc. With their small size, the lighting fixtures can be consealed in the walls of the furniture with small cross-sections.



    Item No.

    SM1919R

    Material6030 Anodized alumium

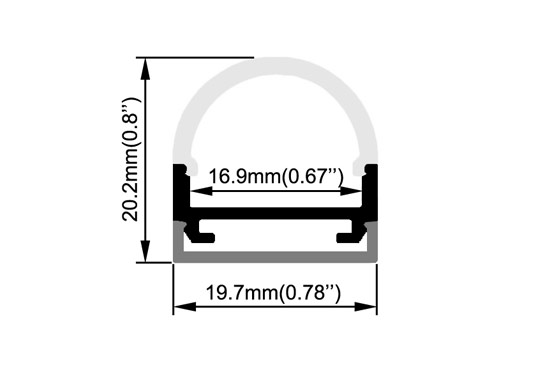

    Dimension19*19mm
    Standard length2m
    DiffuserPMMA Opal matt/Frosted/Transparent
    Available finishSilver/white/black

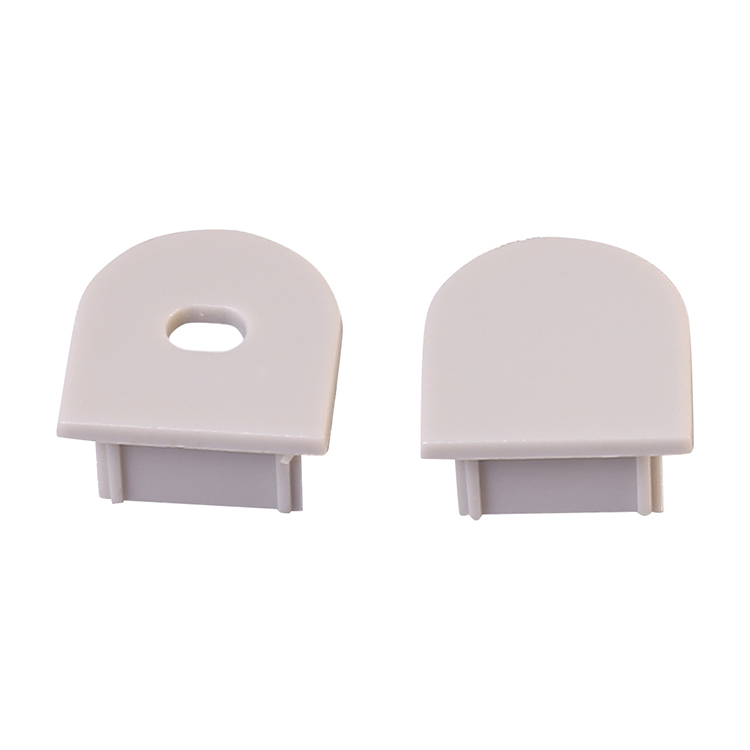

    AccessoiresEndcap, mounting clip
    InstallationSurface mounting
